     We're Distributors of many well known Brands & Makres of Valves.

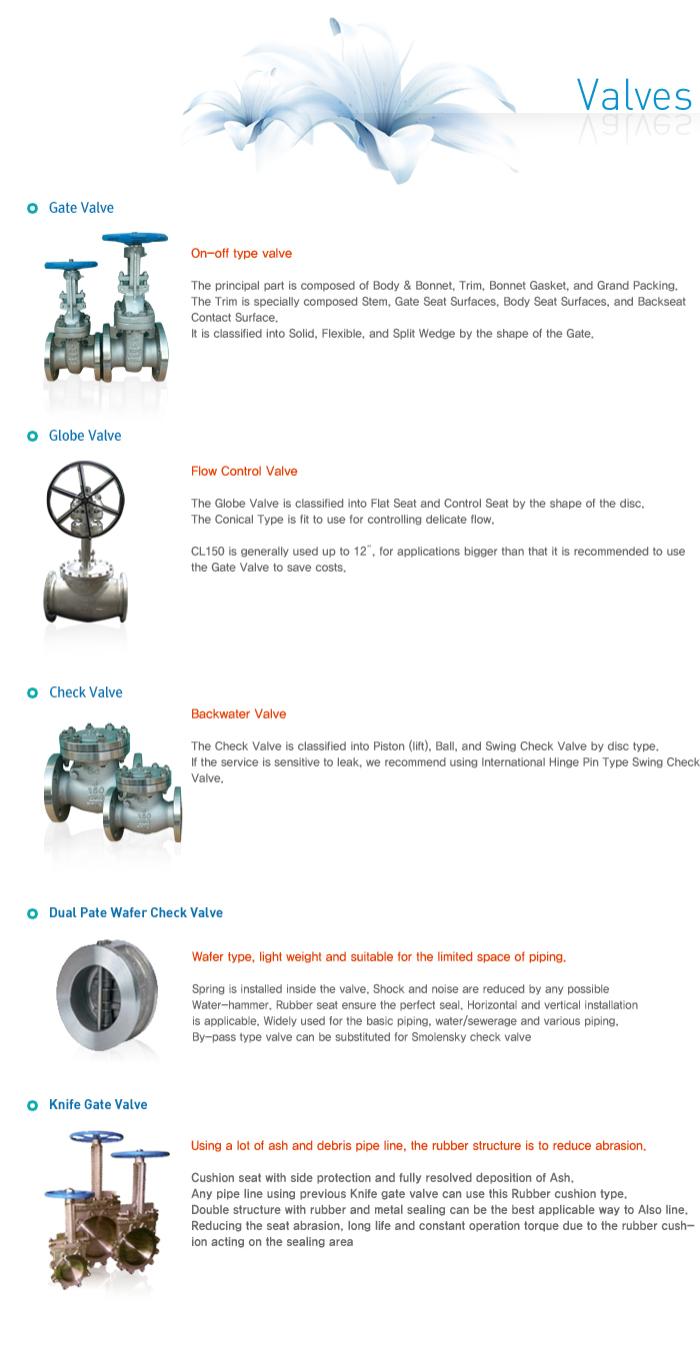

    Stainless Steel Gates, Globes and Checks

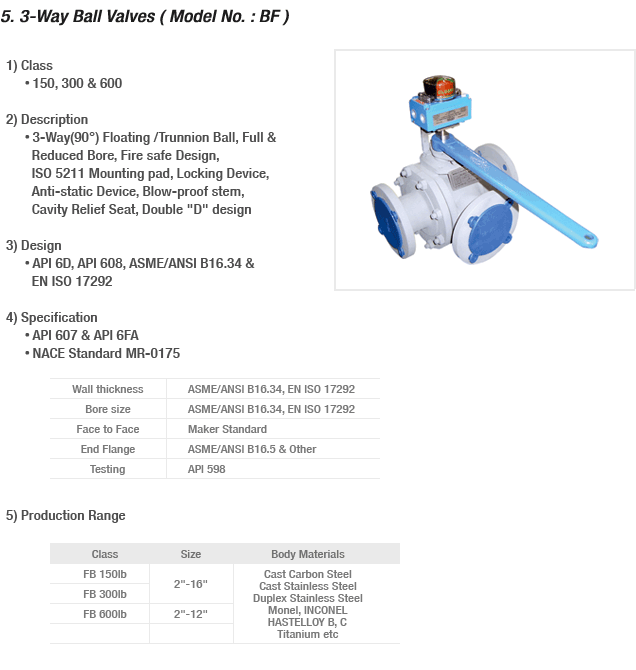

    Ball Valves

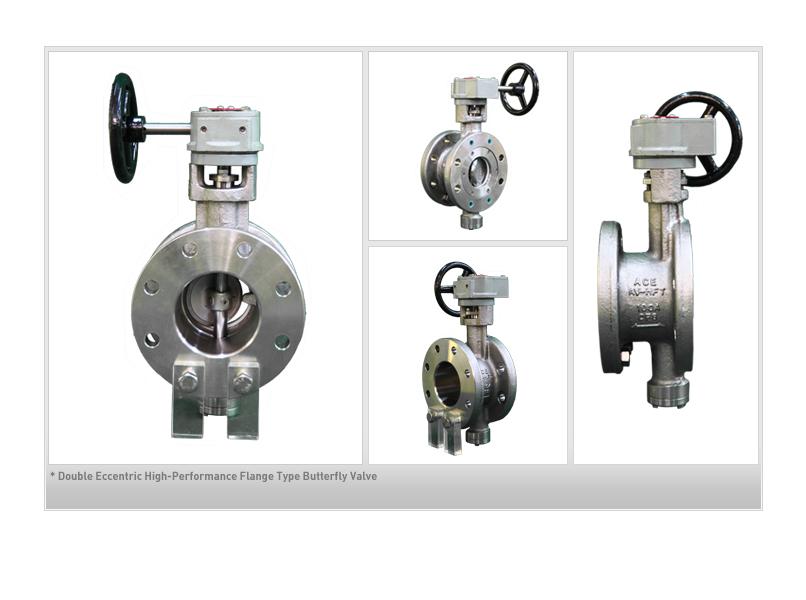

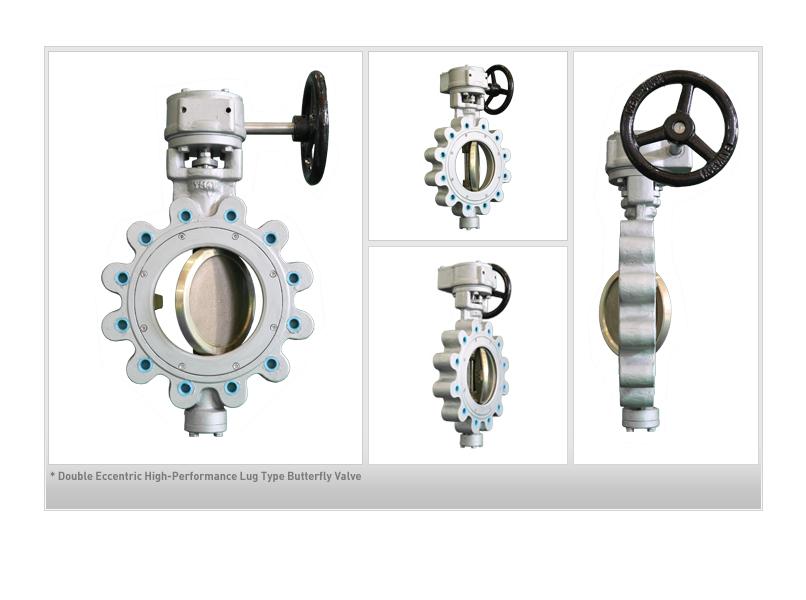

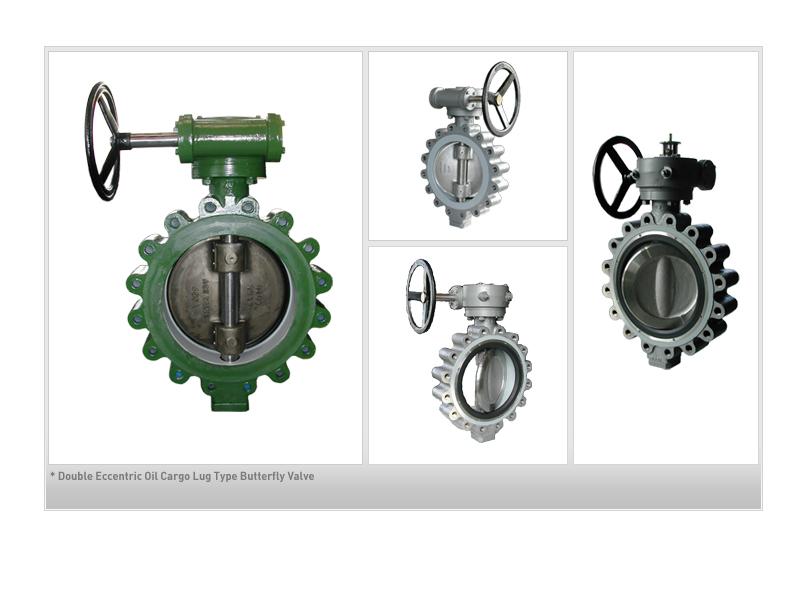

    Butterfly Valves

    Miscellaneous - Silent Check, Dual/Duo Check, Soleniod, Needle, Instrument, Emergency Shut-off, Self-closing, Manifold, Safety Relief, Pressure Reducing

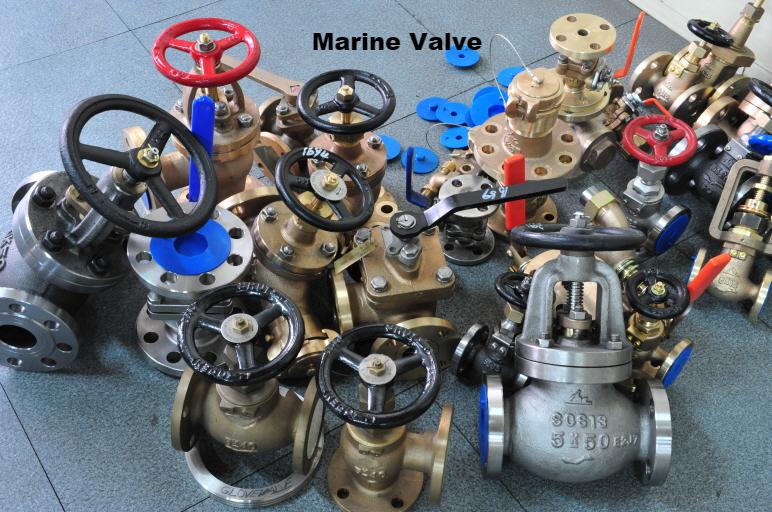

    Bronze and Iron Gates, Globes, Ball, and Checks, flanges, & fittings.

    Forged Steel Gates, Globes and Checks 800#, 1500#, 2500#

    Cast Steel Gates, Globes and Checks 150#, 300# and 600#

    All our Valves come with Certification - JIS, API, ANSI, DIN,

    Auto Airvent Valve(Made in Korea)



    The float control assembly discharges air and gas from all liquid carrying systems without time lag, independent of pressure and temperature variations.
    With the float in the lower position the outlet cross-section is open. Air and gas escape through the upturned immersion tube.
    Rising of the liquid level lifts the float and causes to close the outlet.





    - K3T-DT
    These models are consist of 3way valve and sensor. Adjust flow of fluid by sensor temperature at set point, it will keep the temperature at set temperature.
    The heat sensor is "AHS series".
    This valve will be used mixing/dividing type by valve install status,
    it normally use on cooling System.

    ● FEATURE
    1) Being self-control type, So an auxiliary power is not required.
    2) Installation is very simple and this one is economical type.
    3) It is the proportion control type valve by temperature change.
    4) Heating /cooling is possible by one valve.


    - K3T-WA
    It is consist of valve and sensor. that is "internal" sensor type and it keep setting Temperature with change of temperature control to regulating flow rate.
    This valve will be used mixing/dividing type by valve install status and It is usually
    used on cooling system.

    ● FEATURE
    1) Being self-control type, no auxiliary power is required.
    2) The installation is very easy because it is internal sensor type
    3) No malfunction and economical
    4) The heating/cooler is possible with both of mixing/dividing type by install change.
    5) This is proportion control type valve by temperature change.


    ● Specification
    ModelK3T-DTK3T-WA
    TypeDirectWax
    Applicable FluidsWater,  Oil,  Liquid
    Applicable Press. / Temp7 kgf/cm² / 110℃
    Differential Press. 1.0 kgf/cm² 3.0 kgf/cm²
    OperationDividingNormal (A→B) / High Temp.(A→C)
    MixingNormal (B→A) / High Temp.(C→A)
    Size15~50mm40~150mm
    MaterialBodyDuctile Cast lron, Bronze, Cast Steel
    TrimSrainless Steel
    Accessories●  Temperature sensor
          ●  By-Pass Handle(Option)    		Manual(Option)

    ● Dimensions
    (mm)
    Model Size
    mm(inch)    		dLH1H2Weight
    (Kg)
    K3T-DT15(1/2") 15 154155 115 10
    20(3/4")￡2015815511512
    25(1")2516015511515
    32(1 1/2") 3219016015020
    40(1 1/2") 4019016015023
    50(2")5022016516026
    K3T-WA40(1 1/2") 3217816516021
    50(2")4022517116027
    65(2 1/2") 6514616116021
    80(3")8015916716027
    100(4")10039521317035
    125(5")12548123719044
    150(6")15048125019051










    The product was designed in consideration of stable operation displays its superior
    performance under the several condition of fluid change. It severe pressure reducing
    from inlet’s high pressure to outlet’s low pressure. And it is self-acting type valve.
    KPR-PL : It isusually used in steam and/or gas line.
    The operating typeis pilot type so the capacity of valve is large.
    And the outlet pressure change with inlet Pressure change is small
    KPR-HP : It’s usedAir only. Designed to use under high pressure by pilot control
    Type operating. So the off-set is small and Simply construction and semi-permanent
    with ess malfunction

    ● Specification
    Model KPR-PLKPR-HP
    TypePilotCylinder
    Applicable FluidSteam, Air Air
    Applicable Press. / Temp. 20 kgf/cm² / 220℃40 kgf/cm² / 80℃
    Max. Reducing Ratio10:110:1
    MaterialBodyDuctile Cast Iron, Bronze, Cast SteelCast Steel
    Trim Stainless Steel
    Size15~150 mm15~50 mm

    ● Dimensions
    (mm)
    ModelSize
    mm(inch)    		dLH1H2Weight
    (Kg)
    KPR-CY15( 1/2 ")15165270688
    20(3/4")20169270689
    25(1")251702706812
    32(1 1/4") 321922859017
    40(1 1/2") 401922859018
    50(2")502102909522
    65(2 1/2") 6529033013630
    80(3")8031036015041
    100(4")10035037017071
    125(5")12539048018586
    150(6")150451590222108
    KPR-HP15(8")151453607512
    20(3/4")201453607513
    25(1")251503707814
    32(1 1/4")321824009615
    41(1 1/2") 401824009617
    50(2")5021041011018
    Notes :
    1. Also available in JIS, DIN and ANSI. For all other standards please consult factory.
    2. Weights(Ductile Cast Iron) are approximate and applied JIS 10K.
    3. The flanges shall conform by JIS B2210.





    A safety relief valve is pressure relief characterized by rapid opening action
    or by opening generally proportional to the increase in pressure over the
    opening pressure. When the pressure increase in the line, this valve protect
    the system to discharge the pressure more than Set pressure. It can use on
    either compressible or incompressible fluids, depending on design,
    adjustment or application. The valve have variety of cap according to
    airtight of emergency handle lever part.
    KSR series : It designed to operate under high pressure/temperature.
    It is full bore type, so it has large capacity.
    The valve has a disc and a seat stellite and high durability
    against impacts and corrosion.
    It has variety of cap according to airtight of emergency
    handle lever part for sealing the leakage when it open.
    KSA-CC : It designed to operate under low pressure/temperature.
    It is, LOW LIFT type, and it use on often open the valve in a line.
    Small size & right and easy handling.

    ● Specification
    Model KSR-OL, CL, CCKSA- CC
    TypeFull BoreLow Lift
    Applicable FluidAir, Water, Liquid, Steam
    Applicable Press. / Temp. 40 kgf/cm² / 220℃20 kgf/cm² / 220℃15 kgf/cm² / 150℃
    MaterialBodyDuctile Cast Iron, Bronze, Cast Steel
    Trim Stainless Steel
    Size15~40 mm15~200mm15~25 mm

    ● Dimensions
    (mm)
    ModelSize
    mm(inch)    		d1d2LGHWeight
    (Kg)
    KSR-CC
    -CL
    -OL    		15x25( 1/2 ")152590852028
    20x25(3/4")202590852028
    25x40(1")254011610522315
    25x50(1 1/4") 325011610522316
    40x65(1 1/2") 406513012732122
    50x80(2")508013813735327
    65x100(2 1/2") 651016215649045
    80x125(3")8012517517053565
    100x150(4")10015021219559093
    125x200(5")125200230227725155
    150x200(6")150200230227725235
    200x250200250275280950450
    KSA-CC15(1.2")PT 3/4" 1/2"40511451
    20(3/4")PT 1" 3/4"40541451.2
    25(1")PT 1 3/4" 1"45601451.5
    Notes :
    1. Also available in JIS, DIN and ANSI. For all other standards please consult factory.
    2. Weights(Ductile Cast Iron) are approximate and applied JIS 10K.
    3. The flanges shall conform by JIS B2210.
